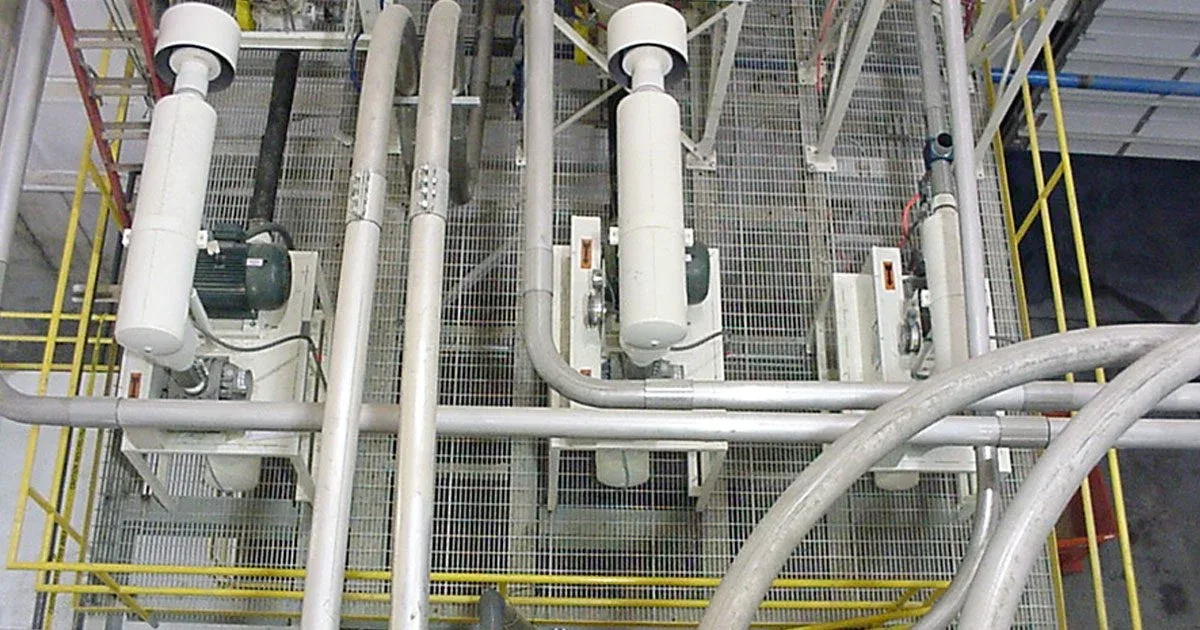

Smart Flow Part Two: Beyond Hammering — Smart Material Flow Solutions That Actually Work

Every time an operator strikes a hopper with a hammer to get material moving, it’s a clear sign of a system design failure. While it may provide a moment of relief, this action is a costly, reactive measure that causes more problems than it solves. It leads to equipment damage, creates safety risks from noise and falling material, and, most importantly, does nothing to prevent the segregation, bridging, or rat-holing from happening again.

The good news? Safe, effective, science-based solutions are within reach. A Smart Flow approach doesn't rely on brute force but applies proven engineering principles to design systems that ensure reliable flow and maintain blend uniformity from A to Z. Let's take a look at the specific components of a truly smart system.

The Foundation: Designing Mass Flow Hoppers and Silos

The most crucial aspect of any bulk solids system is the discharge point from a storage vessel. An improper design here can lead to issues later in the process.

• Funnel Flow (The Problem): Most standard hoppers operate using funnel flow, where material from the center discharges first, leaving stagnant material along the vessel walls. This first-in, last-out pattern is a leading cause of rat-holing (where a narrow channel empties, leaving the rest of the material behind) and segregation, since fine particles often gather in the center.
• Mass Flow (The Solution): A mass flow hopper is designed so that all material moves downward at the same time whenever any is withdrawn. This first-in, first-out flow pattern eliminates stagnant regions, prevents rat-holing, and provides a more consistent, de-aerated feed to downstream equipment. Achieving mass flow requires designing the hopper walls steep enough and the outlet large enough to overcome the material's cohesive strength and wall friction.

An experienced systems integrator will test your material's flow properties to engineer the exact cone angle and outlet dimensions needed for reliable mass flow.

Advanced Smart Flow Solutions That Deliver Results

Beyond the basic hopper design, several other technologies collaborate to form a cohesive Smart Flow system. Each one targets a specific challenge in maintaining blend integrity and consistent movement.

Controlled Feed and Re-Blending Devices

Even with a mass-flow design, some materials benefit from additional control.

• Mass Flow Screw Feeders: These are not standard screw feeders. They are designed with an increasing pitch and diameter along their length. This ensures material is drawn evenly from the entire outlet of the hopper above, maintaining the mass flow pattern and preventing localized bridging.
• Hopper Inserts: In retrofit situations where replacing an entire silo is impractical, specially designed inserts can be a cost-effective solution. A cone-in-cone insert, for example, can change a funnel flow pattern into a mass flow pattern, encouraging flow from stagnant areas and re-blending the material as it discharges.
• High-Performance Rotary Valves: An improperly specified rotary valve can cause system bottlenecks and air leaks. A Smart Flow approach involves selecting a valve with the appropriate displacement, rotor type, and clearances for your specific material and pressure difference, ensuring a smooth, consistent feed.

Gentle and Efficient Conveying

How you transfer material between processes is just as important as how you store it. High-velocity transfer speeds can easily lead to segregation and particle degradation.

• Dense-Phase Pneumatic Conveying: For fragile or segregation-prone materials, dense-phase conveying is often the best option. It moves material at low velocity in slugs or as a moving bed, reducing particle-particle and particle-wall impacts. This gentle approach maintains blend uniformity and prevents the creation of fines.
• Soft-Loading Transfer Chutes: When material needs to drop from one belt to another or into a bin, the transfer chute design is essential. A "soft-loading" or "hood-and-spoon" chute is designed to control the material's trajectory and speed. It ensures the material is gently placed onto the receiving surface with minimal impact, significantly reducing dust generation and segregation.

Air Management and Dust Control

In many systems, uncontrolled air movement is a hidden problem. Air flowing up through a silo can disrupt flow patterns, and poor dust control creates safety and maintenance issues. Proper air balancing, combined with effective dust collection at transfer points, ensures that fine particles remain with the blend rather than becoming airborne. This not only improves air quality but also keeps your product on-spec.

Tying It All Together: Sensors and Smart Commissioning

A modern Smart Flow system can be improved with IIoT (Industrial Internet of Things) technology. Real-time sensors monitor flow rates, bin levels, and pressure differentials, providing valuable data to operators and control systems. This enables proactive adjustments and predictive maintenance alerts before a major failure happens.

Finally, even the best-designed system can fail if not properly commissioned. Expert commissioning involves more than just flipping the switch. It is a systematic process of testing and fine-tuning the system with the actual process material under real-world conditions. An experienced integrator ensures that every component works together as intended, confirming that the system delivers the expected performance and reliability.

Smart Flow Solution Checklist

Is your system truly smart, or is it just getting by?

See how your operation stacks up:

• Hoppers are designed for mass flow, not funnel flow.
• Feeders (screws, valves) are engineered to maintain a uniform draw from storage.
• Conveying method is chosen to match material properties (e.g., dense phase for sensitive blends).
• Transfer points use soft-loading designs to minimize impact and dust.
• Dust control is built into the system, not just an add-on.
• The system was professionally commissioned with your specific material.

If you can't check off these items, you're leaving money on the table and likely relying on guesswork and hammers.

Partner with an Expert to Build Your Smart Flow System

Moving beyond the hammer involves a shift in mindset—from reactive fixes to proactive, system-wide design. The technologies and principles of Smart Flow have been proven to solve the most persistent material-handling challenges, but they require specialized expertise to implement correctly.

The next step is to hire a systems integrator who understands the science of bulk material handling. A true partner will analyze your material, process, and goals to create an integrated solution that eliminates flow issues, preserves product integrity, and delivers a clear return on investment. Stop damaging your equipment and begin designing for success.

Stop designing around symptoms. Contact Magnum Systems to schedule a Smart Flow audit and pinpoint where to eliminate downtime, damage, and blend loss—fast.
